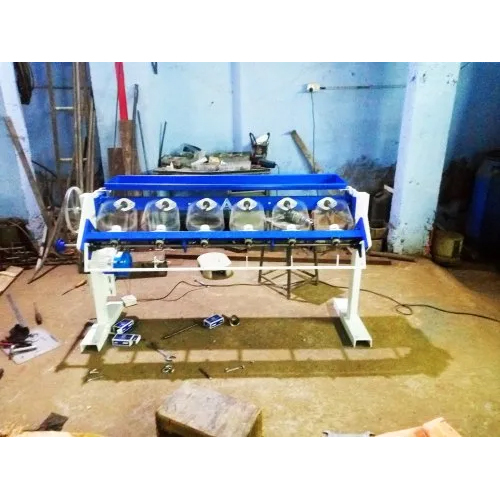

Nylon ball winding machine

Name: Nylon ball winding machine
Brand: Angalamma Machinery
Price: 80000.00 INR
Availability: InStock

Price 80000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Nylon ball winding machine Specification

Cooling System
Air cooled

Machine Type
Nylon Ball Winding

Operating Temperature
5°C to 45°C

Motor Power
1 HP

Noise Level
Below 70 dB

Voltage
220 V

Model No
NBWM-06

Lubricating System
Grease lubricated

Plastic Processed
Nylon Yarn

Power Rating
0.75 kW

Accuracy
High precision winding

Control System
PLC Control

Frame Type
Mild Steel

Frequency
50 Hz

Features
Easy to operate, automatic stop at set length, compact structure

Connectivity Options
Manual operation, standard power

Drive
Belt Drive

Production Capacity
30 kg/hour

Product Type
Nylon Ball Winding Machine

Technology
Semi-Automatic

Power Source
Electric

Operating Type
Automatic

Power
1 HP

Pressure
Standard Atmospheric

Surface Treatment
Painted

Dimension (L*W*H)
1100 mm x 600 mm x 900 mm

Weight (kg)
200 kg

Color
Sky Blue

Usage & Applications

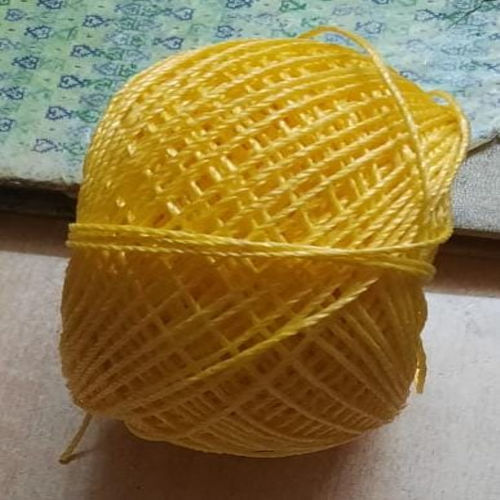

Winding nylon yarn into uniform balls

Operation Mode
Single/Multiple Ball Winding

Number of Spindles
6

Safety Features
Overload protection, emergency stop switch

Installation
Floor mounted

Bobbin Type
Cone/Bobbin Compatible

Yarn Count Range
10s to 80s

Yarn Package Size
Up to 1 kg per ball

Ball Diameter Range
50 mm to 120 mm

Working Speed
1200 RPM

Power Consumption
0.8 kWh

Maintenance
Low maintenance, easy parts accessibility

Nylon ball winding machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
Days

About Nylon ball winding machine

Jump on this unmatchable offer-our First-rate Nylon Ball Winding Machine (NBWM-06) is on Sale and Ending Soon! Decorated in sky blue and built with a robust mild steel frame, this floor-mounted marvel features 6 spindles supporting cone/bobbin winding for packages up to 1 kg. Experience high-precision winding across a broad yarn count range (10s to 80s), automatic set-length stops, and a PLC control system. Low maintenance, safety-first design, and production of up to 30 kg/hour ensure top-tier results-all at an unbeatable value!

Diverse Applications & Material Features

The Nylon Ball Winding Machine efficiently winds nylon yarn into uniform balls, but its versatility extends to winding synthetic and blended yarns on both cone and bobbin surfaces. Designed for consistent performance on various application surfaces, it features gentle handling for delicate yarns without tangling or breakage. Its robust construction and semi-automatic operation make it ideal for textile factories, small-scale workshops, and yarn suppliers seeking reliable material processing with minimal maintenance.

Shipment Details & Certifications

We ensure careful shipment of the Nylon Ball Winding Machine from our main FOB Port in India, offering prompt domestic delivery to all major textile hubs and industrial areas. Charges are calculated transparently, guaranteeing value for your investment. Expect swift arrival with every order. All products are certified to relevant quality and safety standards, providing assurance and peace of mind to our customers throughout the transaction process.

FAQ's of Nylon ball winding machine:

Q: How does the nylon ball winding machine ensure high precision during the winding process?

A: The machine is equipped with advanced PLC control, automatic stop at set lengths, and high-precision winding mechanisms to guarantee consistently uniform yarn balls with minimal error.

Q: What are the main benefits of using this nylon ball winding machine in textile production?

A: It offers fast winding speeds, low maintenance, overload protection, and the ability to handle various yarn counts and package sizes, improving overall productivity and product quality.

Q: Where is the machine suitable for installation and operation?

A: It is floor-mounted and ideal for textile factories, yarn processing workshops, and supplier units, thanks to its compact structure and easy parts accessibility.

Q: What surface and yarn types can this winding machine handle?

A: The machine is designed for winding nylon yarn but can also accommodate synthetic and blended yarns on both cone and bobbin surfaces without damage to the fibers.

Q: When should maintenance be performed on the ball winding machine?

A: Routine maintenance should be done according to the manufacturer's guidelines, but the machine's design ensures easy access to all parts, reducing downtime and maintenance effort.
